Fast Analogue and digital I/O

We have many I/O modules that can be chosen for your system - ADCs, DACs at 100s of MHz, user configurable digital I/O, VHDL Intellectual property for imaging interfaces etc. They are designed to be general purpose and flexible to meet the needs of as many customers as possible. Some systems can be built from a single module, but others use the HEART module carriers to offer 400Mbytes/second real time data connections.

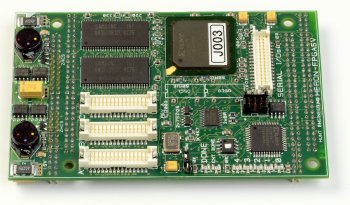

I/O with FPGA that you can program yourself module with I/O & programmable FPGA Often used for:
HERON-FPGA3 1M gates Virtex-II FPGA and 90 Digital I/Os General Purpose
HERON-FPGA4 3M, 6M or 8M gates Virtex-II FPGA and 90 Digital I/Os  General Purpose
HERON-FPGA5 1M gates Virtex-II FPGA, 256Mbytes SDRAM and 45 Digital I/Os General Purpose
HERON-FPGA7 3,6 or 8M gates Virtex-II FPGA, 256Mbytes SDRAM and 45 Digital I/Os General Purpose
HERON-FPGA9 1M gates Virtex-II Pro FPGA with Embedded PowerPC, 256 Mbytes DDR SDRAM and 30 Digital I/Os General Purpose
HERON-FPGA12 Virtex-4 FX12 FPGA with Embedded PowerPC, 128 Mbytes DDR SDRAM and 60 Digital I/Os General Purpose
HERON-FPGA14 Virtex-4 LX60/SX35 FPGA with 128 Mbytes DDR SDRAM and 180 Digital I/Os General Purpose
HERON-IO2 1M gates Virtex-II FPGA, 2 ch. of 125Msps 12 bit A/D and 2 ch. 125Msps 14 bit D/A Digital Radio
HERON-IO5 1.5 or 3M gates Virtex-II FPGA, 2 ch of 210Msps 12 bit A/D and 2 ch of 160Msps 16 bit D/A  Digital Radio
HERON-IO5-DO 1.5 or 3M gates Virtex-II FPGA, 2 ch of 210Msps 12 bit A/D and 2 ch of 160Msps 16 bit D/A with differential outputs Digital Radio
ADC Modules module with ADC  & programmable FPGA
HERON-IO2 with standard IP 1M gates Virtex-II FPGA, 2 ch. 125Msps 12 bit A/D and 2 ch. 125Msps 14 bit D/A Digital Radio
HERON-IO5 with standard IP 1.5 or 3M gates Virtex-II FPGA, 2 ch of 210Msps 12 bit A/D and 2 ch of 160Msps 16 bit D/A  Digital Radio
HERON-IO5-DO with standard IP 1.5 or 3M gates Virtex-II FPGA, 2 ch of 210Msps 12 bit A/D and 2 ch of 160Msps 16 bit D/A with differential outputs Digital Radio

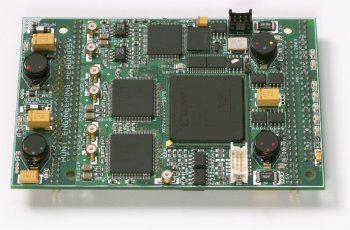

DAC Modules module with DAC & programmable FPGA
HERON-IO2 with standard IP 1M gates Virtex-II FPGA, 2 ch. 125Msps 12 bit A/D and 2 ch. 125Msps 14 bit D/A Digital Radio
HERON-IO5 with standard IP 1.5 or 3M gates Virtex-II FPGA, 2 ch of 210Msps 12 bit A/D and 2 ch of 160Msps 16 bit D/A  Digital Radio
HERON-IO5-DO with standard IP 1.5 or 3M gates Virtex-II FPGA, 2 ch of 210Msps 12 bit A/D and 2 ch of 160Msps 16 bit D/A with differential outputs Digital Radio

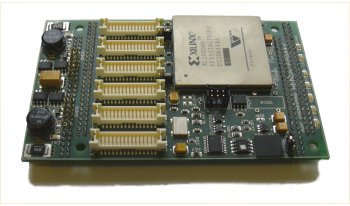

Digital I/O FPGA module with digital I/Os
HERON-FPGA3 with standard IP 1M gates Virtex-II FPGA and 90 Digital I/Os General Purpose
HERON-FPGA4 with standard IP 3M, 6M or 8M gates Virtex-II FPGA and 90 Digital I/Os  General Purpose
HERON-FPGA5 with standard IP 1M gates Virtex-II FPGA, 256Mbytes SDRAM and 45 Digital I/Os General Purpose
HERON-FPGA7 with standard IP 3,6 or 8M gates Virtex-II FPGA, 256Mbytes SDRAM and 45 Digital I/Os General Purpose
HERON-FPGA9 with standard IP 1M gates Virtex-II Pro FPGA with Embedded PowerPC, 256 Mbytes DDR SDRAM and 30 Digital I/Os General Purpose
HERON-FPGA12 with standard IP Virtex-4 FX12 FPGA with Embedded PowerPC, 128 Mbytes DDR SDRAM and 60 Digital I/Os General Purpose
HERON-FPGA14 with standard IP Virtex-4 LX60/SX35 FPGA with 128 Mbytes DDR SDRAM and 180 Digital I/Os General Purpose
            REMEMBER! HERON C6000 modules also have some digital I/Os

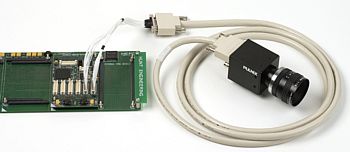

Imaging Interfaces FPGA module with CameraLink imaging interface
HERON-FPGA3 with standard IP for Camera Link  1M gates Virtex-II FPGA and 90 Digital I/Os Imaging
HERON-FPGA4 with standard IP for Camera Link 3M, 6M or 8M gates Virtex-II FPGA and 90 Digital I/Os  Imaging
HERON-FPGA5 with standard IP for Camera Link 1M gates Virtex-II FPGA, 256Mbytes SDRAM and 45 Digital I/Os General Purpose
HERON-FPGA7 with standard IP for Camera Link 3,6 or 8M gates Virtex-II FPGA, 256Mbytes SDRAM and 45 Digital I/Os General Purpose
HERON-FPGA9 with standard IP for Camera Link 1M gates Virtex-II Pro FPGA with embedded PowerPC, 256 Mbytes DDR SDRAM and 30 digital I/Os General Purpose
HERON-FPGA12 with standard IP for Camera Link   Virtex-4 FX12 FPGA with Embedded PowerPC, 128 Mbytes DDR SDRAM and 60 Digital I/Os General Purpose
HERON-FPGA14 with standard IP for Camera Link   Virtex-4 LX60/SX35 FPGA with 128 Mbytes DDR SDRAM and 180 Digital I/Os General Purpose

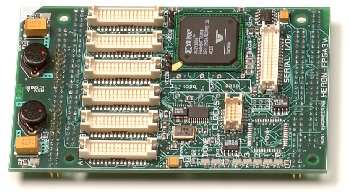

RS232/485 FPGA module with RS232/485 serial interface options
HERON-FPGA3 with standard IP 1M gates Virtex-II FPGA and 90 Digital I/Os General Purpose
HERON-FPGA4 with standard IP 3M, 6M or 8M gates Virtex-II FPGA and 90 Digital I/Os  General Purpose
HERON-FPGA5 1M gates Virtex-II FPGA, 256Mbytes SDRAM and 45 Digital I/Os General Purpose
HERON-FPGA7 3,6 or 8M gates Virtex-II FPGA, 256Mbytes SDRAM and 45 Digital I/Os General Purpose
HERON-IO2 1M gates Virtex-II FPGA, 2 ch. 125Msps 12 bit A/D and 2 ch. 125Msps 14 bit D/A Digital Radio

If you need something that you don't see here, you could design it yourself using the HERON specification or ask us - we may be working on something already or be able to propose another way of solving your problem.
