HERON-FPGA5 Cables

HERON-FPGA5 is supplied without cables unless specified at time of ordering. The following cables can be supplied with the HERON-FPGA5 at no extra charge:

EITHER
Up to 2 off FPGA30 Digital I/O cable.

FPGA30 cable

This has 30 connections 30cms long wire type UL1571 28AWG with a Hirose connector, part number DF13-30DS-1.25C, at one end and open-ended at the other so you can connect to your own equipment.
Please specify FPGA30 when ordering

OR

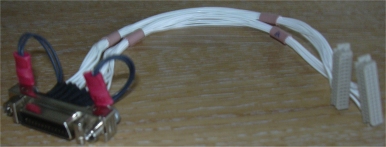

1 off FPGA30-CameraLink cable.

This has a MDR-26 CameraLink connector at one end. The other end has Hirose connectors, part number DF13-30DS-1.25C.
Please specify FPGA30-CameraLink when ordering.

Additional cables can be supplied at the following prices:
FPGA30 cable - £25 each
FPGA30-CameraLink cable - £65 each

 Back to HERON-FPGA5 datasheet
