HERON-FPGA14 Cables

HERON-FPGA14 is supplied without cables unless specified at time of ordering. The following cables can be supplied with the HERON-FPGA14 at no extra charge:

EITHER
Up to 6 off FPGA50 Digital I/O cable.

FPGA50 digital I/O cable

This has 50 connections 30cms long wire type UL1571 28AWG with a Hirose connector, part number DF20A-50DS-1C, at one end and open-ended at the other end so you can connect to your own equipment.
Please specify FPGA50 when ordering

OR
Up to 6 off FPGA50-CameraLink cables.

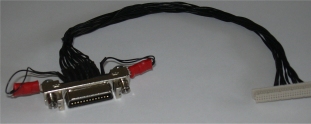

FPGA50 CameraLink cable

These 200mm cables have a MDR-26 CameraLink connector at one end. The other end has a Hirose connector, part number DF20A-50DS-1C.
Please specify FPGA50-CameraLink when ordering.

 OR:
Any combination of the above up to a total of no more than 6 Hirose connectors.

Additional cables can be supplied at the following prices:
FPGA50 cable - £37 each
FPGA50-CameraLink cable - £65 each

 Back to HERON-FPGA14 User datasheet
